Drake AC-3 Power Supply

Here is one of the first AC-3 power supplies produced from Drake.

Notice all the capacitors are mounted under the chassis rather than the top mounted can capacitors of the later series AC-3 and AC-4.

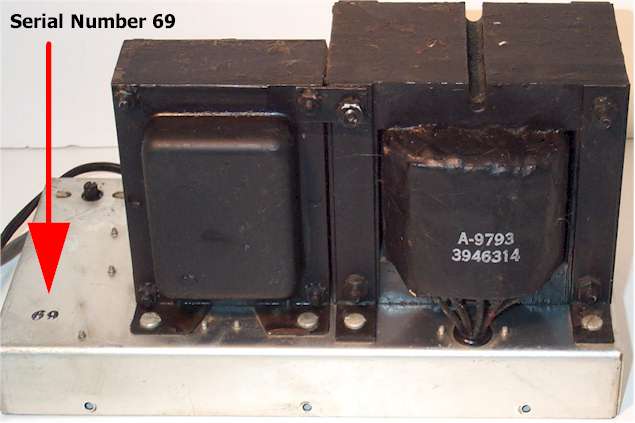

Serial #69
